Product Overview
- Part Number

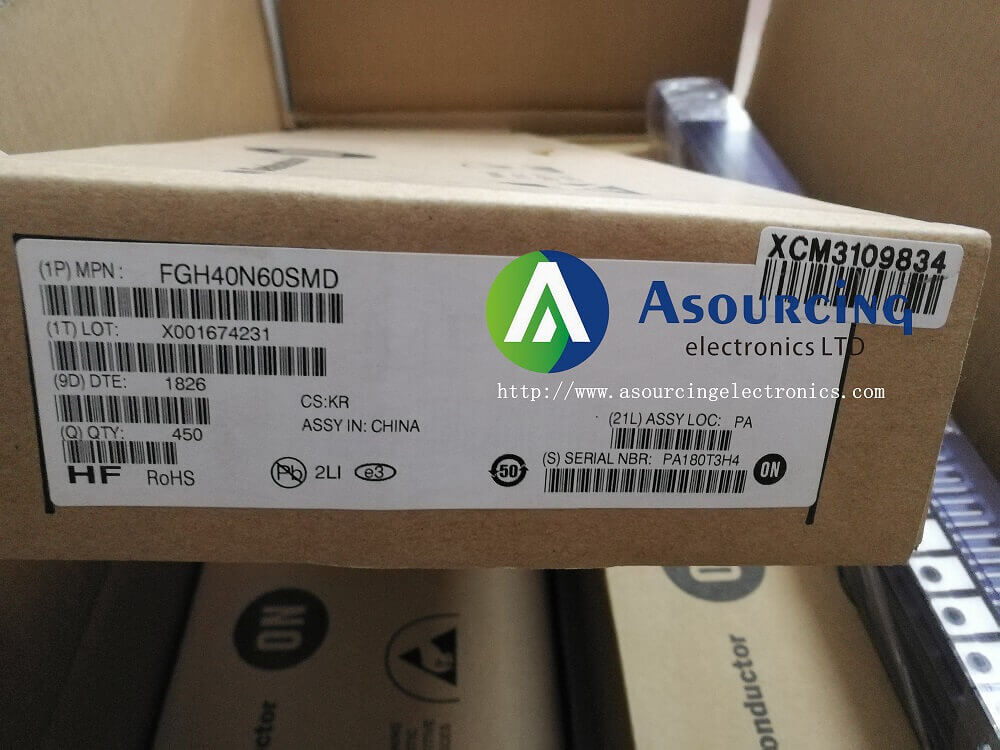

- FGH40N60SMD
- Quantity Available
- 10,000
- Manufacturer
- AMI Semiconductor / ON Semiconductor
- Catalog
- Transistors - IGBTs - Single
- Description
- IGBT 600V 80A 349W TO-247-3
Get Quote
Documents & Media
- Datasheets
- FGH40N60SMD
Product Attributes
- Current - Collector (Ic) (Max) :
- 80A
- Current - Collector Pulsed (Icm) :
- 120A
- Gate Charge :
- 119nC
- IGBT Type :
- Field Stop
- Input Type :
- Standard
- Mounting Type :
- Through Hole
- Operating Temperature :
- -55°C ~ 175°C (TJ)
- Package / Case :
- TO-247-3
- Packaging :
- Tube
- Part Status :
- Active
- Power - Max :
- 349W
- Reverse Recovery Time (trr) :
- 36ns
- Series :
- -
- Supplier Device Package :
- TO-247-3
- Switching Energy :
- 870µJ (on), 260µJ (off)
- Td (on/off) @ 25°C :
- 12ns/92ns
- Test Condition :
- 400V, 40A, 6Ohm, 15V
- Vce(on) (Max) @ Vge, Ic :
- 2.5V @ 15V, 40A
- Voltage - Collector Emitter Breakdown (Max) :
- 600V
Description
Applications：
Solar Inverter, UPS, Welder, PFC, Telecom, ESS
