ICM-20602 by TDK InvenSense sent to Spain by Fedex

2020-05-21

ICM-20602 INVENSENSE 200pcs 2019+ 0.85USD 2-3days | IMU ACCEL/GYRO/TEMP I2C/SPI LGA

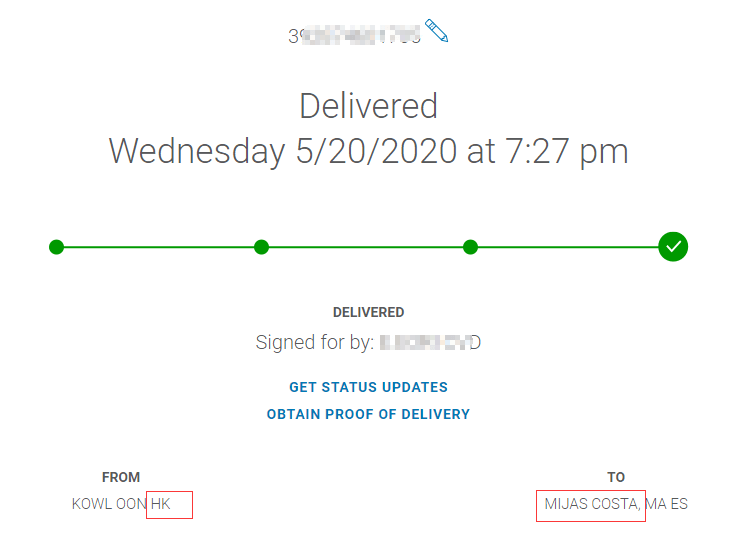

ICM-20602 by TDK InvenSense sent from Hong Kong to Spain was signed at 7:20 pm on May 20.

ICM-20602 From Hong Kong to Spain.png

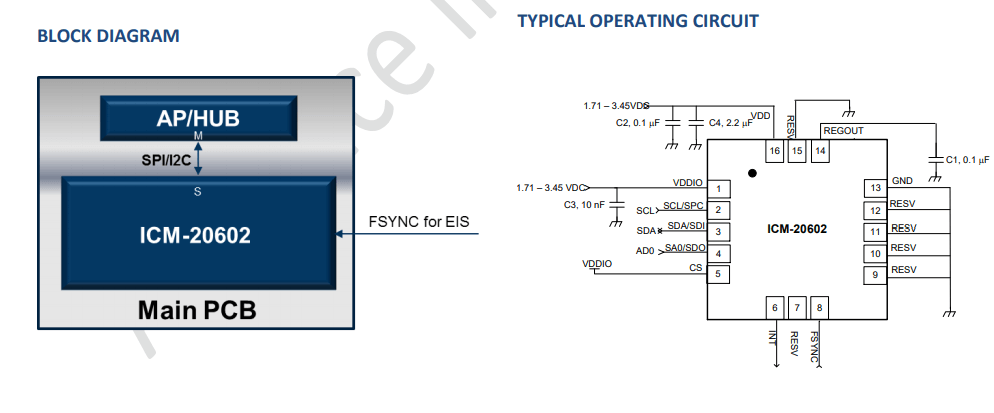

The ICM-20602 is a 6-axis motion tracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 3x3x0.75mm (16-pin LGA) package.

Applications:

▪ Smartphones and Tablets

▪ Wearable Sensors

▪ IoT Applications

▪ Motion-based game controllers

▪ 3D remote controls for Internet connected DTVs and set top boxes, 3D mice

Features:

▪ 3-Axis Gyroscope with Programmable FSR of ±250dps, ±500dps, ±1000dps and ±2000dps

▪ 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g and ±16g

▪ User-programmable interrupts

▪ Wake-on-motion interrupt for low power operation

of applications processor

▪ 1K byte FIFO buffer enables the applications processor to read the data in bursts

▪ On-Chip 16-bit ADCs and Programmable Filters

▪ Host interface: 10MHz SPI or 400kHz Fast Mode I2C

▪ Digital-output temperature sensor

▪ VDD operating range of 1.71 to 3.45V

▪ MEMS structure hermetically sealed and bonded at wafer level

▪ RoHS and Green compliant

electronic part suppliers

With an established network of high-quality manufactures of electronic components, we make sure our electronic components adhere to high international standards and specifications. We provide 400days warranty, traceability of your order all the way back to the factory, low prices and promotional discounts, which directly minimizes your business risk.

If you have any inquiry, please contact us immediately for details, we will reply to you in the shortest time.
