Product Overview
- Part Number
- NJM386BD
- Quantity Available
- 10,000
- Manufacturer
- JRC Corporation / NJRC
- Catalog
- Linear - Amplifiers - Audio
- Description
- IC AUDIO PWR AMP LOW VOLT 8-DIP
Get Quote
Documents & Media
- Datasheets
- NJM386BD
Product Attributes
- Features :
- -
- Max Output Power x Channels @ Load :
- 1W x 1 @ 32Ohm
- Mounting Type :
- Through Hole
- Operating Temperature :
- -40°C ~ 85°C (TA)
- Output Type :
- 1-Channel (Mono)
- Package / Case :
- 8-DIP (0.300", 7.62mm)
- Packaging :
- Tube
- Part Status :
- Last Time Buy
- Series :
- -
- Supplier Device Package :
- 8-DIP
- Type :
- Class AB
- Voltage - Supply :
- 4V ~ 18V
Description
We can offer NJM386BD made by NJR Corporation/NJRC to you which is a low voltage audio power amplifier IC with 1-Channel.
GENERAL DESCRIPTION
The NJM386B is a wider operating voltage and higher output power version of NJM386. The maximum operating voltage is 18V, and the maximum output power is up to 1W.
FEATURES
• Operating Voltage(4v~ 18V)
• Minimum External Components
• Low Operating Current(5mA)
• Voltage Gain(20~-200)
• Single Supply Operation
• Self-centering of Output Offset Voltage
• Package Outline （DIP8, SIP8, DMP8）
• Bipolar Technology
APPLICATIONS
• AM-FM radio amplifiers
• Portable tape player amplifiers
• Intercoms
• TV sound systems
• Line drivers
• Ultra-sonic Drivers
• Small servo drivers
• Power converters

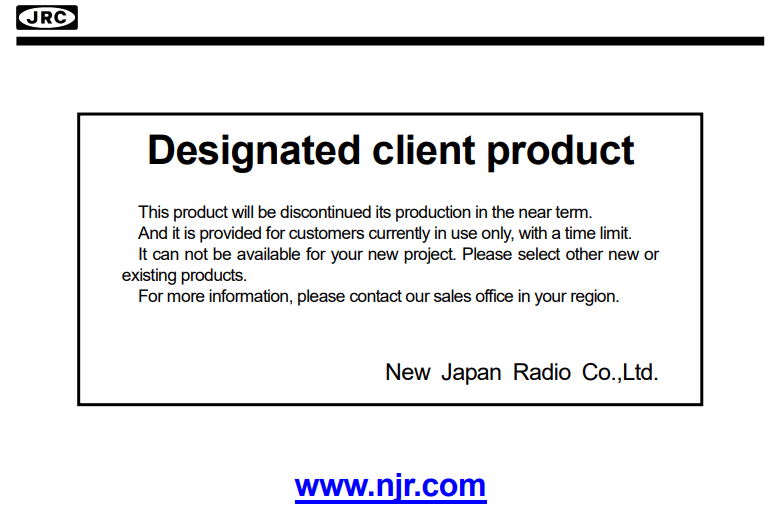

NJM386BD will be discontinued in its production in the near term.

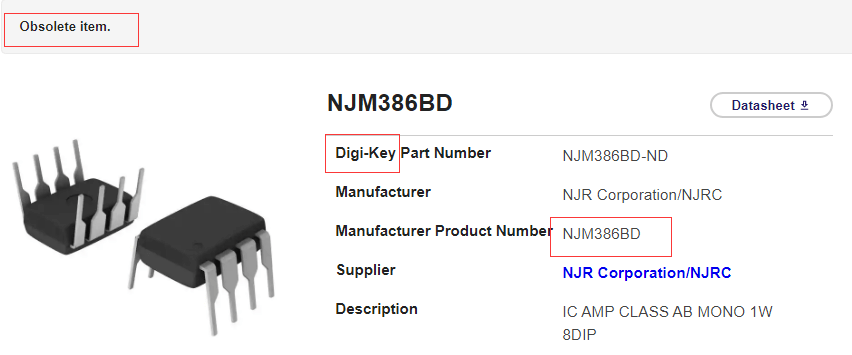

NJM386BD is an obsolete item on Digikey.
NJM386BD has no stock available on Mouser.
